This is a new, patentable design that combines functionality, aesthetics, comfort, and safety. After months of testing and trials, Grupo GUBIA has added this new version of its bamboo slat ceiling, with in-depth fireproofing treatment, to its catalog. The new model has achieved a Bs1d0 fire rating, complying with the highest requirements of the DB-SI Technical Code.
The system is available in various formats; with a specific fixed edge of 19 or 38 mm, the height of the slats and the spacing between them can be customized.
Slatted ceiling installation system

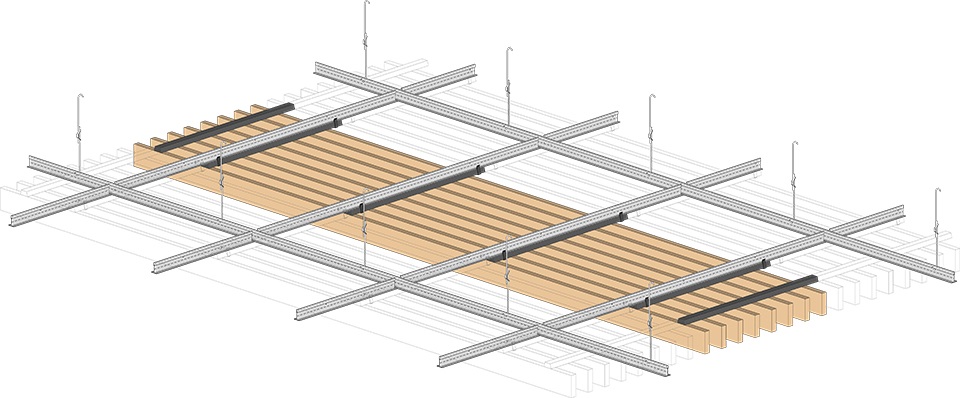

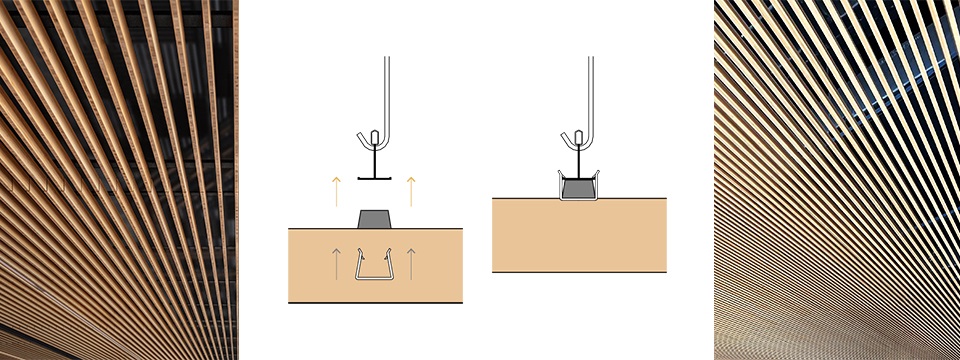

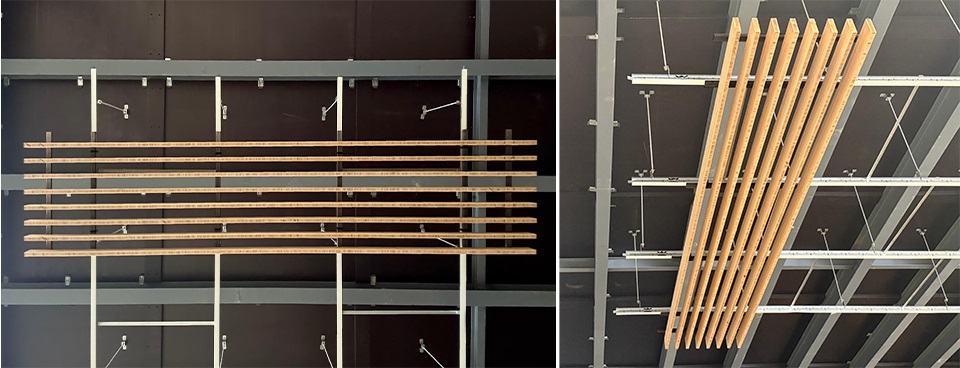

A profile system, such as that used in a removable ceiling, is sufficient for installing the system: primary and secondary profiles suspended from the support by rods, which allow the surface to be leveled. The modules that make up the slats, which come in different sizes depending on the model, are hung from the previous structure using clips. Only 8 clips are needed to suspend each module.
This system facilitates the assembly and disassembly of slatted ceilings for access to installations.
Safety and reaction to fire
The big news about this version is its in-depth fireproofing and subsequent treatment with Bs1d0 flame-retardant varnish, designed for projects with maximum safety requirements. Also available with other Cs2d0/Bs2d0 fire ratings depending on project needs.
An eco-friendly system with excellent acoustic performance
The morphology of the GUBI-SLATS system, with slats of different widths and spacings, contributes to the acoustic improvement of the spaces where it is installed. This feature can be reinforced with a perforated top panel and sound-absorbing material, such as rock wool in different thicknesses. The result is a warm and attractive surface, where the naturalness of bamboo contrasts with a black background, providing visual richness and acoustic comfort.
The slat modules, made exclusively from bamboo, offer all the sustainable advantages inherent in bamboo, in addition to its stability, durability, flexibility, and sound insulation qualities.
Benefits of the new slatted ceiling version in architectural projects
- The new Bs1d0 fire-retardant version offers multiple benefits for architects and specifiers.
- Enhanced safety: compliance with the highest fire reaction standards, ideal for public and corporate spaces.
- Design flexibility: possibility of customizing heights, spacing, and materials, including other wood species
- Efficient assembly: adjustable modules and patented clip system that speed up installation and facilitate maintenance.
- Acoustic comfort: the combination of slats of different sizes with additional acoustic insulation improves sound absorption in any project.
- Sustainability: use of bamboo, a renewable, resistant, and stable material that contributes to environmental certifications such as LEED and BREEAM.
- Contemporary aesthetics: the warmth of bamboo and its characteristic edge bring distinction and visual value to any architectural space.
With the GUBI-SLATS bamboo slat ceiling, we offer a ceiling system that combines advanced safety, contemporary aesthetics, acoustic comfort, and sustainability in a single product. Thanks to its Bs1d0 fire rating, customizable modules, and easy installation, it is the perfect solution for demanding architectural projects that seek distinction, functionality, and environmental responsibility. Discover how this covering can transform your spaces: Contact our technical team and take your project to the next level.
